Nuprime Evolution DAC Försteg

Beskrivning



Nuprime Evolution DAC som förutom är en otroligt påkostad dac men även ett försteg av mycket hög kvalitè.

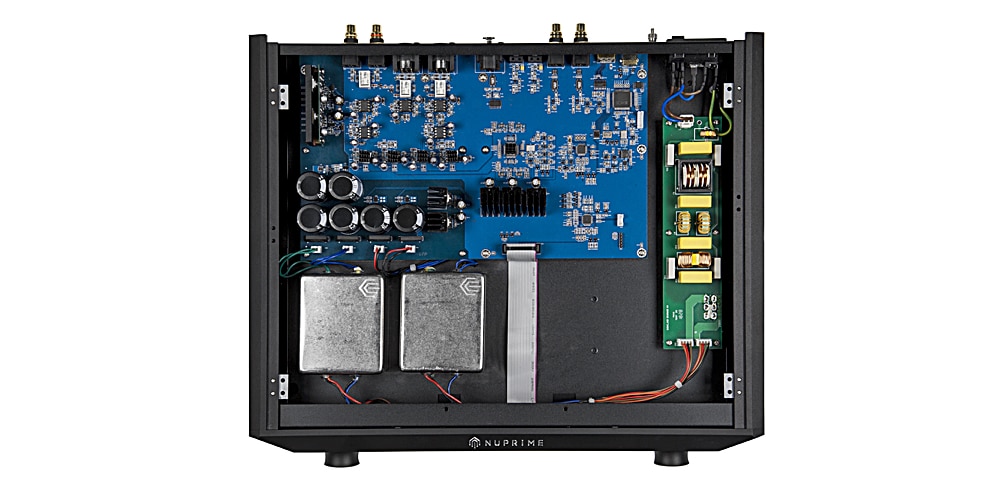

För att uppfylla kraven på högsta prestanda i NuPrime Evolution-serien har strömkretsen i Evolution DAC omformats från grunden med C-Core-transformatorer och AC-filter, förutom DAC-kretsen. Den använder en av världens bästa 32-bitars dac , ES9038PRO och NuPrime PSRC IC-chip för att inte bara avkoda utan också ge samplingshastighet upp/ner-konvertering från PCM 44.1kHz till PCM 768kHz och DSD64 till DSD512.

En dac/försteg i absolut toppklass!

Passar perfekt med Nuprime Evolution One monoblock som ni hittar HÄR

• NuPrime PSRC IC chip provides sample rate up/down conversion processing, from PCM 44.1kHz to PCM 768kHz and DSD64 to DSD512 (including PCM to/from DSD).
• A proprietary NuPrime implementation capable of decoding DoP formats via coaxial and optical inputs (to support NuPrime source and server devices that are able to output DoP stream in addition to S/PDIF).
• Seven digital filters.
• USB Supports native MQA decode
• Output Level variable or fixed mode.
• Analog output phase change.
• Analog output channel setting (both outputs can be set to Right, Left, R + L or L + R).
• Display brightness adjustment.
• Seven digital inputs for complete system flexibility. Full microprocessor control with memory retention for all inputs.
• Custom designed non-linear volume curve.
• USB Asynchronous transfer mode.
• USB Supports DSD native playback by ASIO and DoP method. DSD is decoded natively with the same sample rate as the input source.
• USB Supports native MQA decode.
• Individually adjustable volume on each input for precise level matching of sources.
• Exclusive driver software for Windows, standard driver software for Mac.
• NuPrime vibration-free isolation feet.
• Available in black or silver anodized aluminum finish.

EGENSKAPER

Digital

• USB: Type B 2.0 Hi-Speed, data stream up to 384KHz/24Bit and DSD 256
• IIS/DSD: Supports PCM 768KHz/32Bit and DSD 512 data streams
• COAXIAL: Supports PCM 44.1KHz ~ 768KHz/32Bit and DSD DOP 64,128 and 256
• OPTICAL: Supports PCM 44.1KHz ~ 192KHz/32Bit and DSD DOP 64
• AES/EBU: Supports PCM 44.1KHz ~ 192KHz/32Bit and DSD DOP 64

Analog

• Analog Outputs Connectors:Output Impedance: < 50 Ohm
• 2 XLR balanced outputs: Fix mode 8Vrms or 4Vrms (user selectable). If set to variable output, the maximum output is 8Vrms.
• 2 RCA unbalanced outputs: Fix mode 4Vrms or 2Vrms (user selectable). If set to variable output, the maximum output is 4Vrms.
• Frequency response: 20 Hz – 20 KHz / ±0.3 dB. SNR: > 110 dB
• THD+N: < 0.0003%

General

• USB Audio Firmware: upgradable via USB DFU tool
• Power Supply: AC voltage selector switch at the bottom of the unit, 115V or 230V
• Dimensions [W x H x D]: 430 mm x 55 mm x 315 mm
• Weight: 5.2Kg
• Power consumption: 13.5W (0.9W Standby)
• Garanti: 2år
