Beskrivning

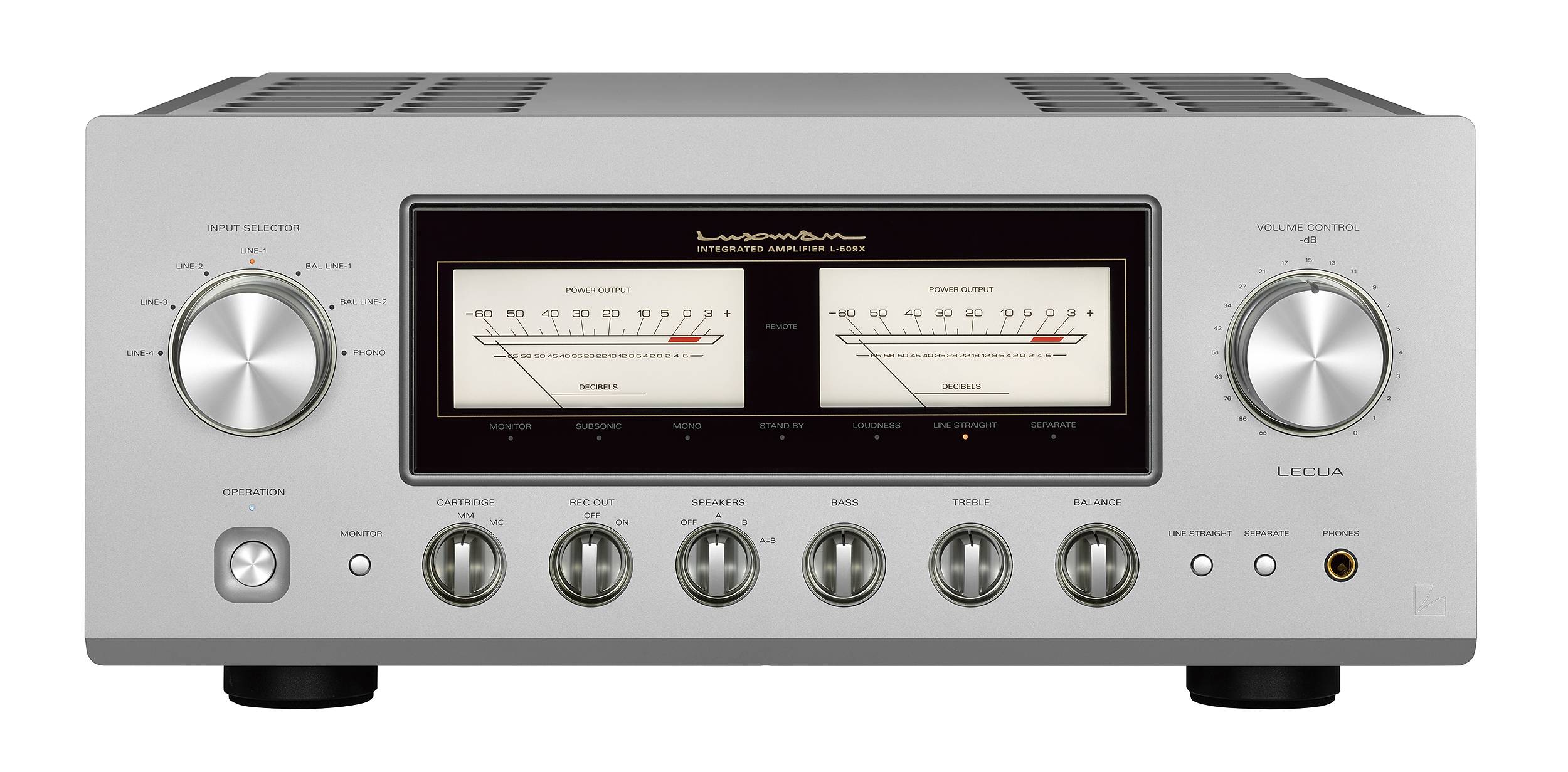

Luxman L-509X Med en “varmare” ljudåtergivning och riktigt bra dynamik så är Luxman en förstärkare som verkligen trivs tillsamman med dom flesta högtalarmärken av bra kvalité.
Även hörlursförstärkare finns inbyggt.
EGENSKAPER
-
- Rated output 120W + 120W (8Ω), 220W + 220W (4Ω)
-
- Input sensitivity/input impedance PHONO (MM): 2.5mV/47kΩ
-
- PHONO (MC): 0.3mV/100Ω
-
- LINE: 180mV/47kΩ
-
- BAL.LINE: 180mV/55kΩ
-
- MAIN-IN: 1.1V/47kΩ
-
- Output voltage REC OUT: 180mV,
-
- PRE-OUT: 1V Frequency response
-
- PHONO: 20Hz to 20kHz (±0.5dB)
-
- LINE: 20Hz to 100kHz (within -3dB)
-
- Total harmonic distortion 0.007% or less (8Ω, 1kHz) 0.06% or less (8Ω, 20Hz to 20kHz)
-
- S/N ratio (IHF-A)
-
- PHONO (MM): 91dB or more PHONO (MC): 75dB or more
-
- LINE: 105dB or more Volume adjustment
-
- New LECUA1000 Amplification circuit
-
- ODNF 4.0 Output configuration Bipolar 4-parallel push-pull
-
- Damping factor 370
-
- Max. amount of tone control
-
- BASS: ±8dB at 100Hz
-
- TREBLE: ±8dB at 10kHz
-
- Power supply 230V~(50Hz) /115V~(60Hz)
-
- Power consumption 380W 150W (under no signal), 0.5W (at standby)
-
- External dimensions 440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth
-
- Net weight 29.3kg (main unit)
-

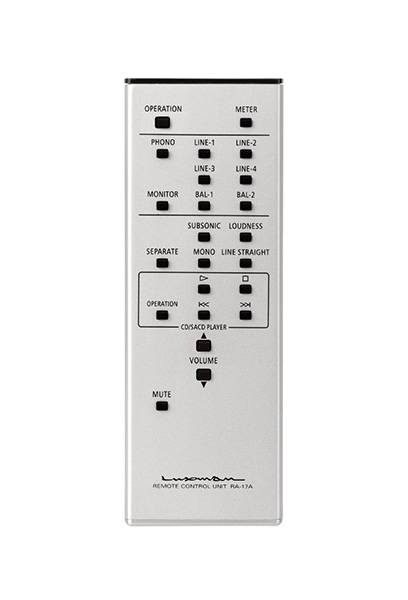

- Accessories Remote control (RA-17A)
-
- Power cable
-
- Speaker terminal Supported Y-lug terminal dimension
-
- Width of part a: 16mm or less
-
- Width of part b: 7mm or more
-
- Garanti:2år
