Nuprime CDT-8 Pro

Beskrivning

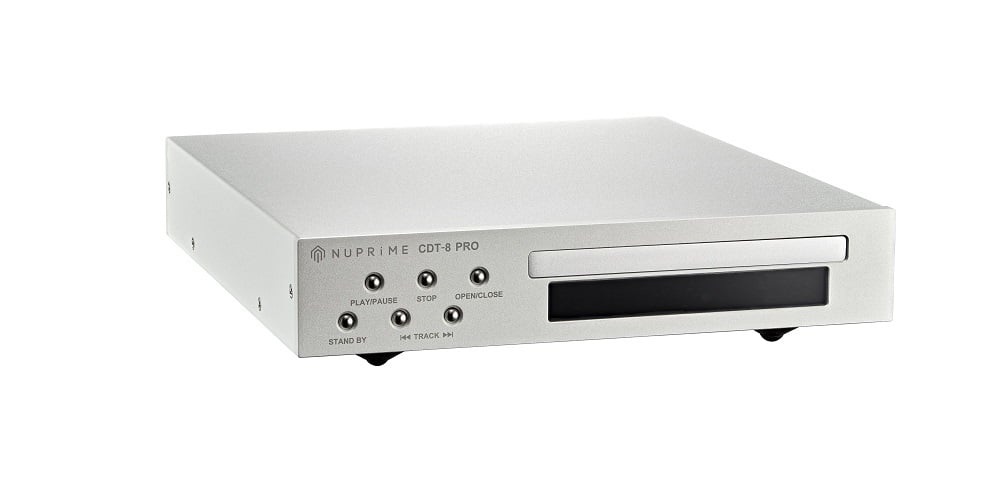

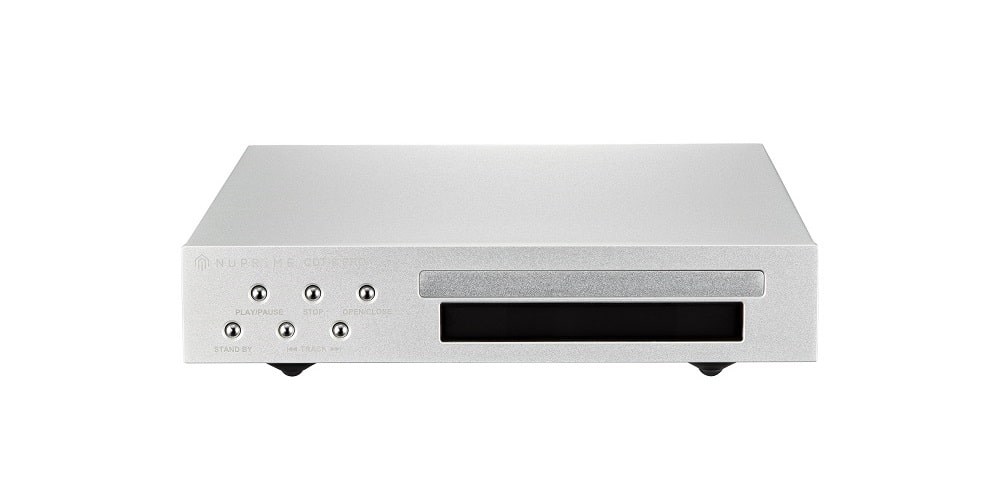

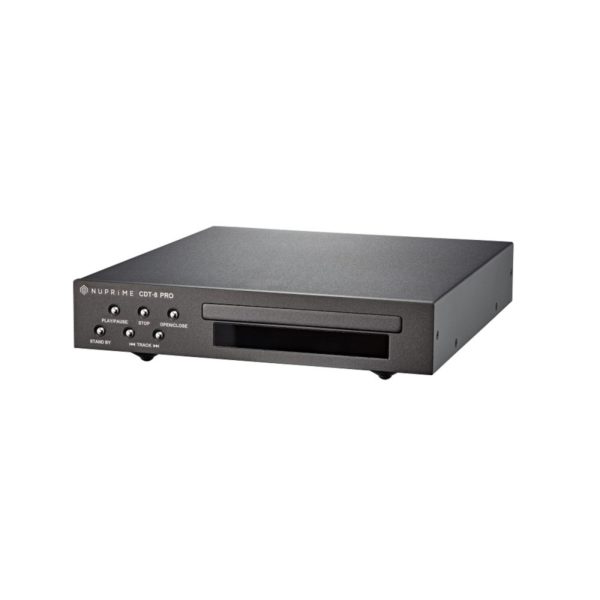

NuPrime CDT-8 Pro är en mycket exakt professionell CD-transport med flera digitala utgångar.



Transportens jämna hastighet minimerar vibrationer och minskar jitter och distorsion.



• • A powerful ARM chip LPC2103F CD reads, writes and controls error correction

• • Philips SAA7824HL high-end laser reads/writes head control and decodes chips

• • Supports CD-DA CD-R, CD-RW

• • Algorithm reduces digital interference resulting in extremely low jitter

• • Coaxial output with a dedicated isolation transformer

• • Low jitter I2S output for professional use

• • The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256

• • The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

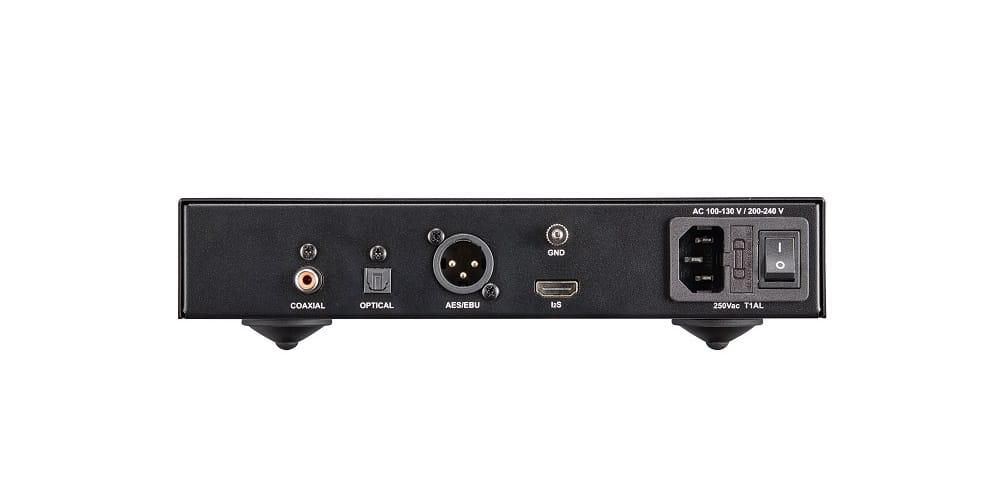

Flera digitala utgångar som Optisk, Coaxial, AES & HDMI

Aluminium fjärrkontroll medföljer



EGENSKAPER





• • Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, DoP64



• • Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256



• • HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256



• • AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
    192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256



• • Bit Resolution: 24-bits



• • Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)



• • Weight: 2.1Kg
