Beskrivning

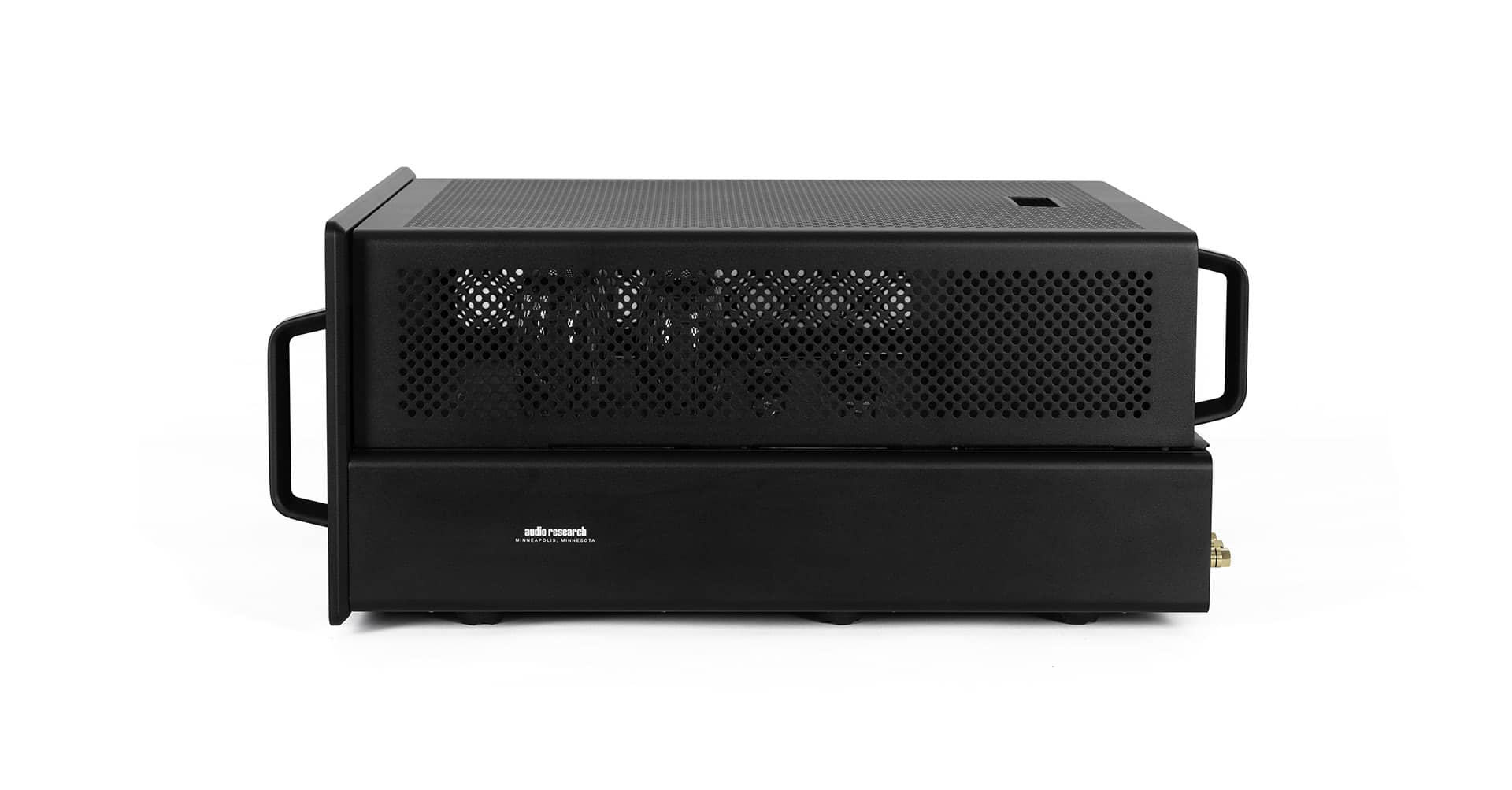

Audio Research Reference 160S är ett kraftigt stereoslutsteg med 4par KT150 rör och 4st 6H30 drivrör för att kunna återge kraft och kontroll i musiken så naturligt som det är möjligt.
2×140 Watt med massor av kraft för att återge en enorm ljudbild och massor av dynamik i alla register.
Ett stereorörslutsteg i absolut toppklass!

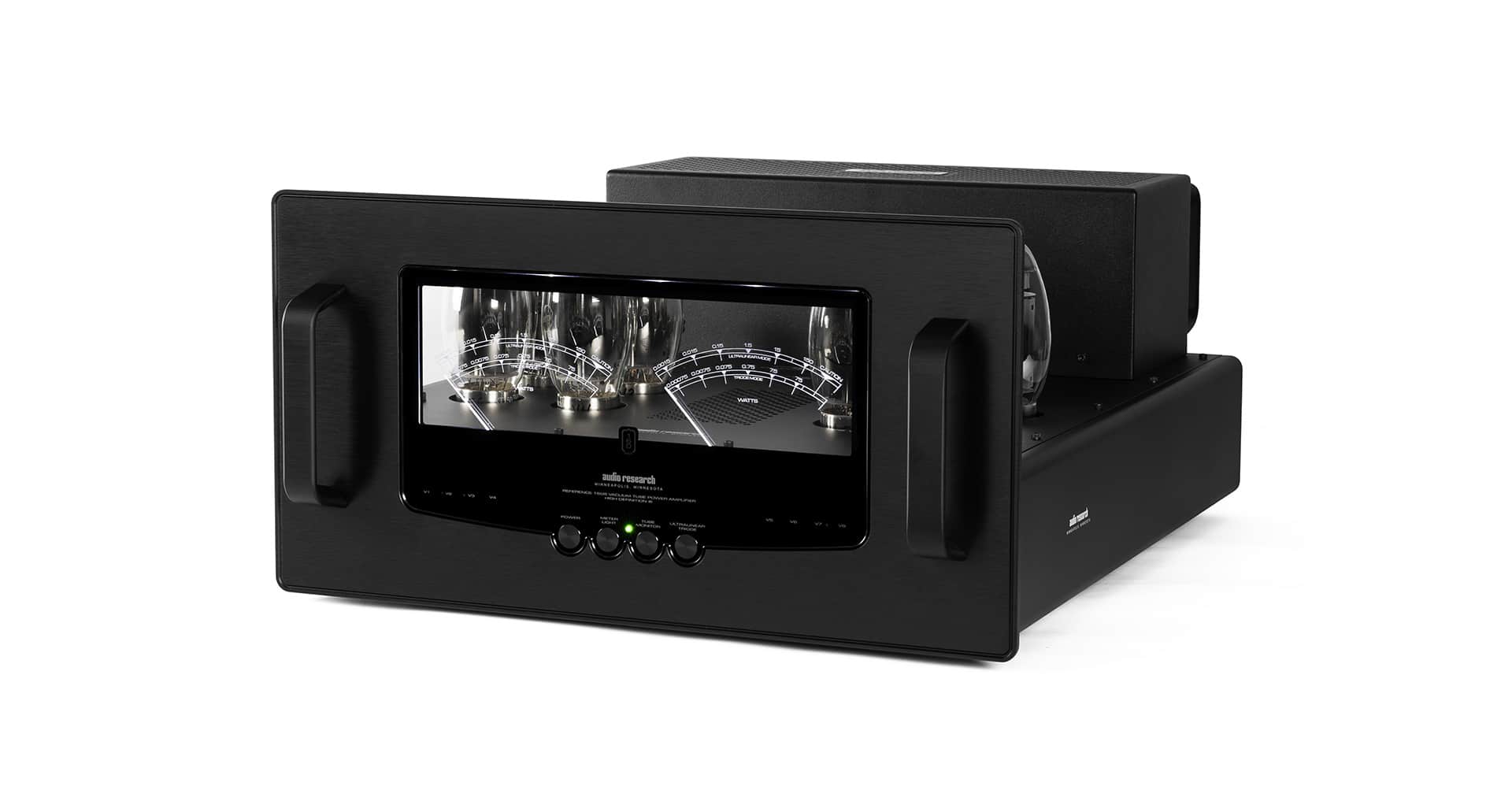

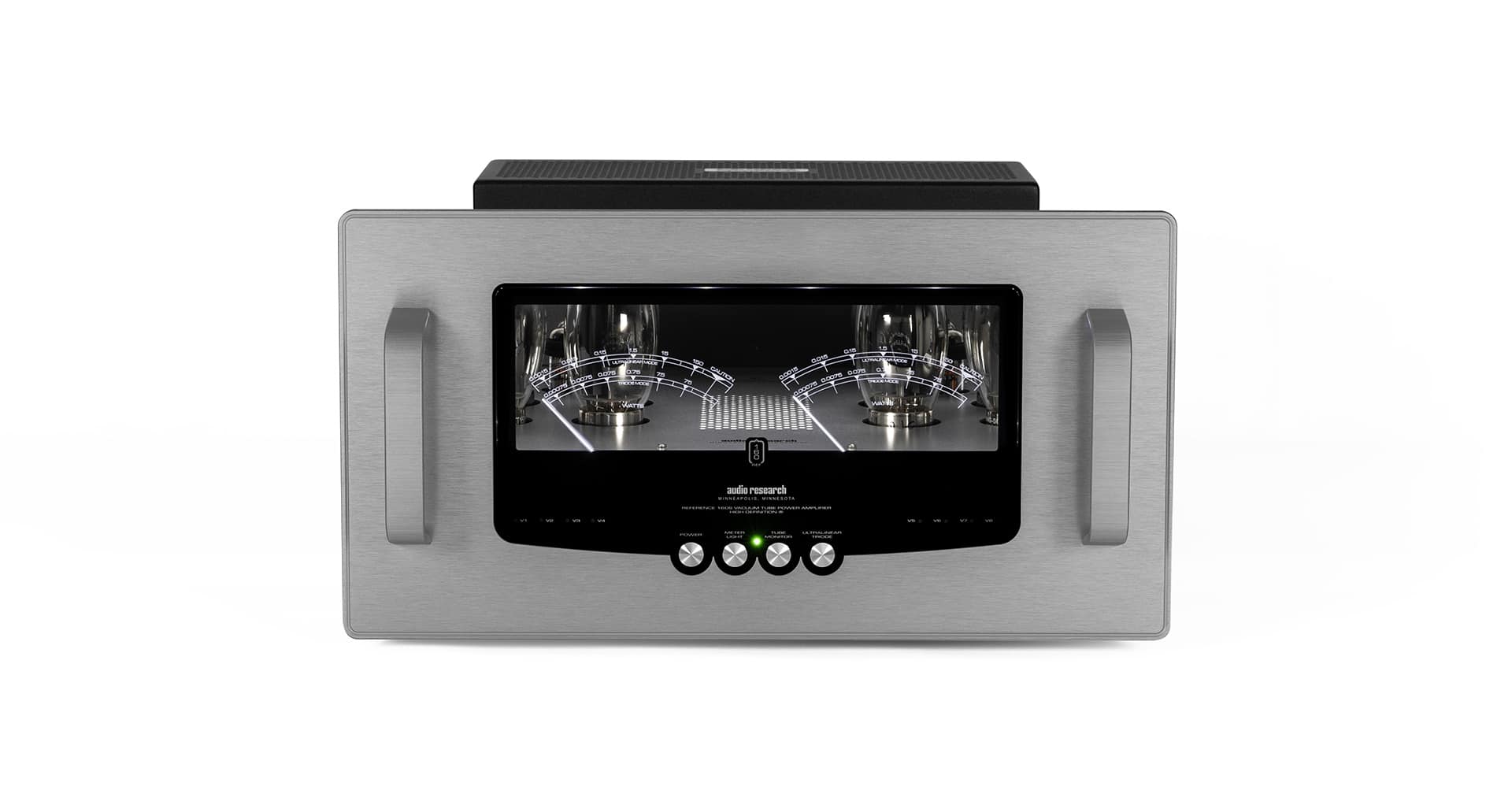

Den eleganta, diskreta industridesignen med dubbla GhostMeters som kompletterar resten av Reference-serien.
Mer info Här
EGENSKAPER
-
-
POWER OUTPUT
-
-
-
140 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% at 140 watts, below 0.04% at 1 watt. (Note that actual power output is dependent upon both line voltage and condition i.e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not critical).
-
-
-
POWER BANDWIDTH
-
-
-
(-3dB Points) 5Hz to 70kHz.
-
-
-
FREQUENCY RESPONSE
-
-
-
(-3dB points at 1 watt) 0.5Hz to 110kHz.
-
-
-
INPUT SENSITIVITY
-
-
-
2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms).
-
-
-
INPUT IMPEDANCE
-
-
-
300k ohms Balanced; 100k ohms Single-ended.
-
-
-
OUTPUT POLARITY
-
-
-
Non-inverting. Balanced input pin 2+ (IEC-268).
-
-
-
OUTPUT TAPS
-
-
-
16 ohms, 8 ohms, 4 ohms.
-
-
-
OUTPUT REGULATION
-
-
-
Approximately 0.6dB 16 OHM LOAD TO OPEN CIRCUIT (Damping factor approximately 14).
-
-
-
OVERALL NEGATIVE FEEDBACK
-
-
-
14dB SLEW RATE: 13 volts/microsecond RISE TIME: 2.0 microseconds.
-
-
-
POWER REQUIREMENTS
-
-
-
105-130VAC 60Hz (210-250VAC 50Hz) 400 watts at rated output, 700 watts maximum, 260 watts at idle, 1 watt off.
-
-
-
TUBES REQUIRED
-
-
-

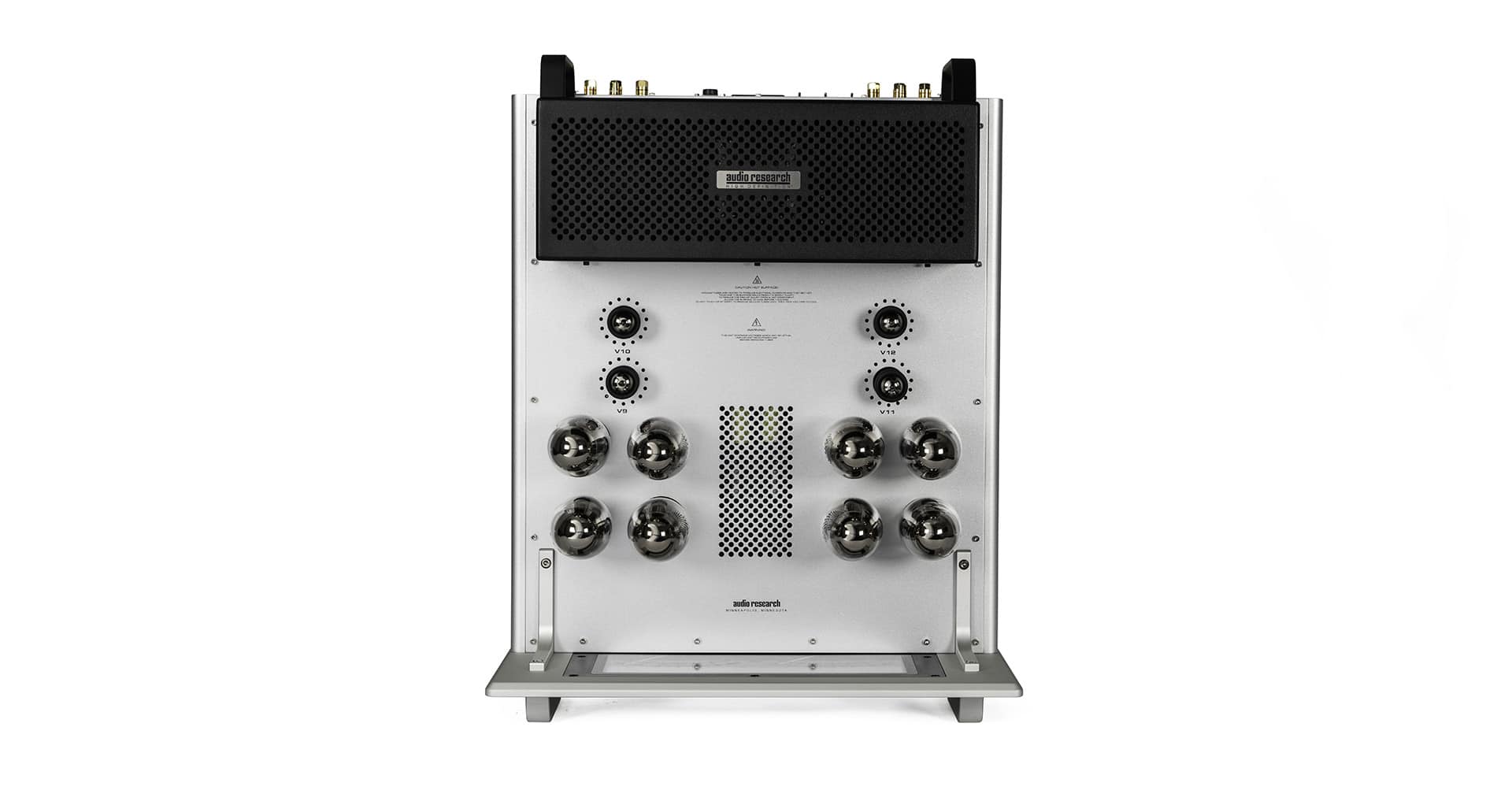

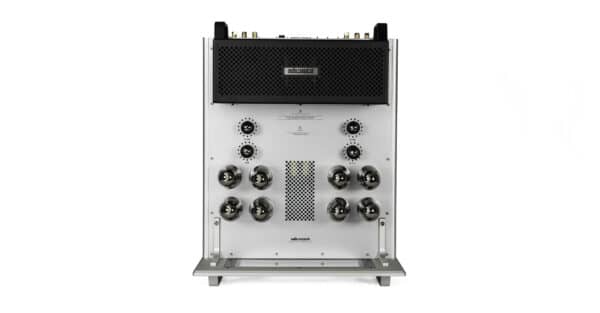

4 matched pair KT150 (Power output V1-4); 4 6H30 (Gain stage V5 and V6).
-
-
-
DIMENSIONS
-
-
-
Width 19.0 (48.26 cm)
-
-
-
Height 10.25 (26 cm)
-
-
-
Depth 21.5 (54,61 cm)
-
-
-
With Handles and Connectors: 24 (60.96 cm)
-
-
-
WEIGHT
-
-
-
46kg
-
-
- GARANTI 2ÅR
