Delbetalning från Beskrivning

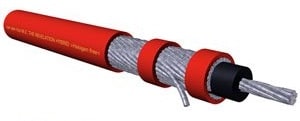

Van Den Hul Revelation Hybrid är en färdigterminerad högtalarkabel med
Berri Bus banankontakter.
Pris för andra längder maila oss gärna
EGENSKAPER
| material | Hybrid |
| product category | speaker cable – Single-lead, Mid-range |
| cable type | Single lead, multistrand |
| conductor material | HYBRID: Both centre conductor and outer groups: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon®saturated layer(s) |
| design purpose | Highest quality loudspeaker cable |
| eff conductor | Core: 5.20 mm². Outer groups combined: 11.88 mm². Total: 17.07 mm². / Total: ~AWG 5 / Core: 294 Outer 16 groups each: 42 |
| external diameter | 12.5 mm. |
| jacket colors | Red |
| resistance | Core: 0.332 Ohm/100 m. Outer groups combined: 0.145 Ohm/100 m. Both parallel: 0.101 Ohm/100 m. |
| insulation |
Jacket: HULLIFLEX®3 / 300 Vrms min. |
| connector types |

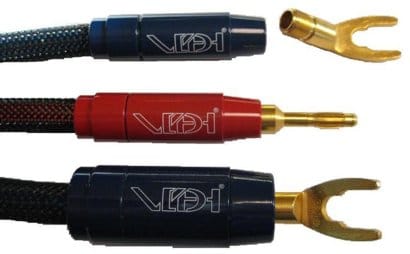

Our 10.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 13.2 mm. Ø cable entrance diameter BERRI Bus Connectors Custom mountable on any length ordered. |
