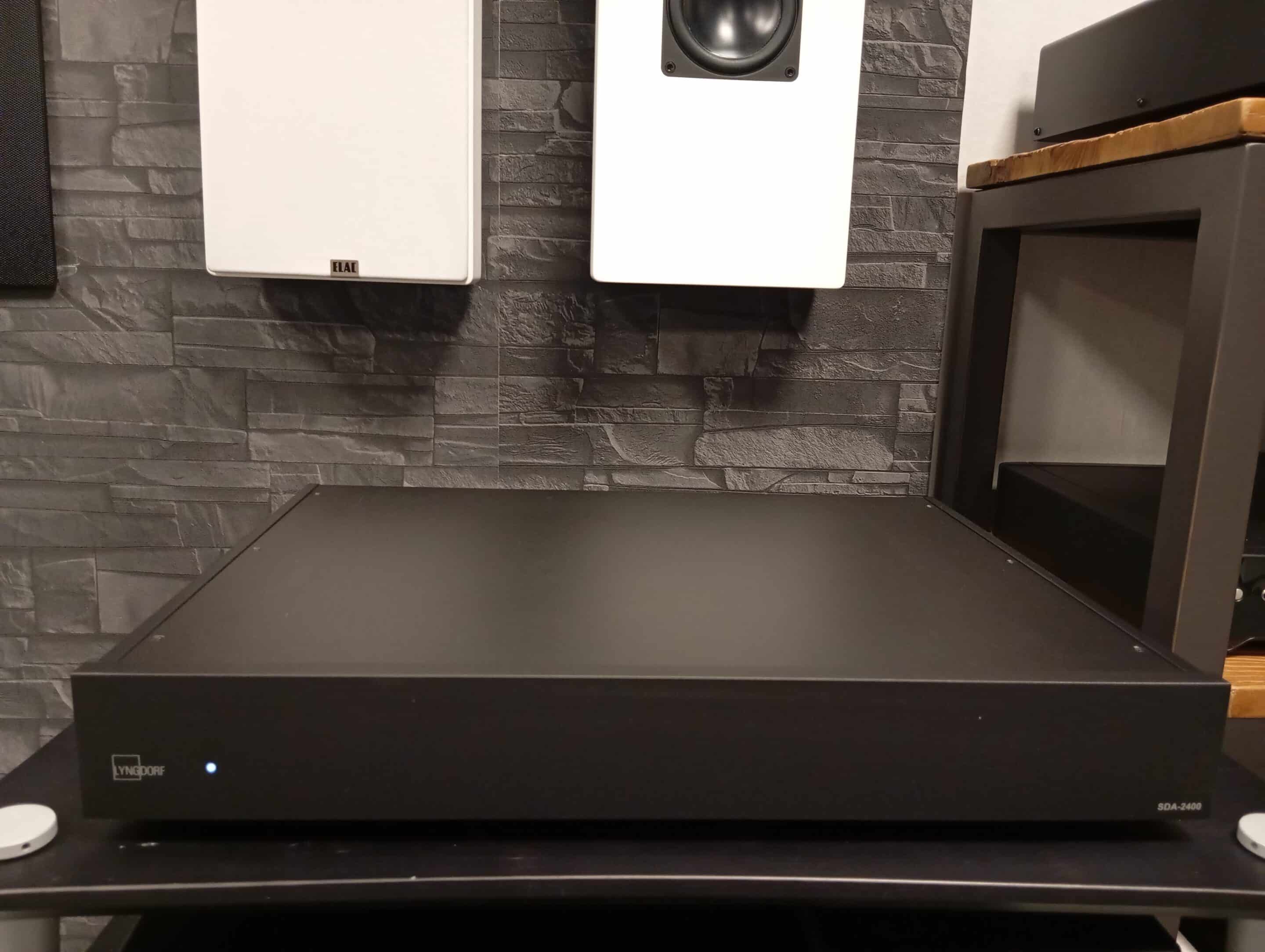

Lyngdorf SDA-2400

Specifications

Power Rating: 2 x 400 W @ 4Ohm, 2 x 200 W @ 8Ohm
Idle power consumption: 25 W
Standby power consumption: 0.35 W
Frequency response: +- 0.1 dB (ref 20Hz – 20 kHz)
THD+N: 0.004% @ 1W / 8 Ohms, 0.006% @ 1 W / 4 Ohms, 0.02% @ 100 W / 8 Ohms, 0.02% @ 200 W / 4 Ohms
Channel separation: 96 dB (1 kHz, 200 W @ 8 Ohms)
Max. output current: 40 A
Gain: 26 dB
Signal/noise ratio: 117 dB (A-wgt, 200 W @ 8 Ohms)
Damping factor: 266 (8 Ω, @100 Hz)
Input sensitivity: 2V rms
Input impedance: Balanced 10kOhm, Unbalanced 200kOhm

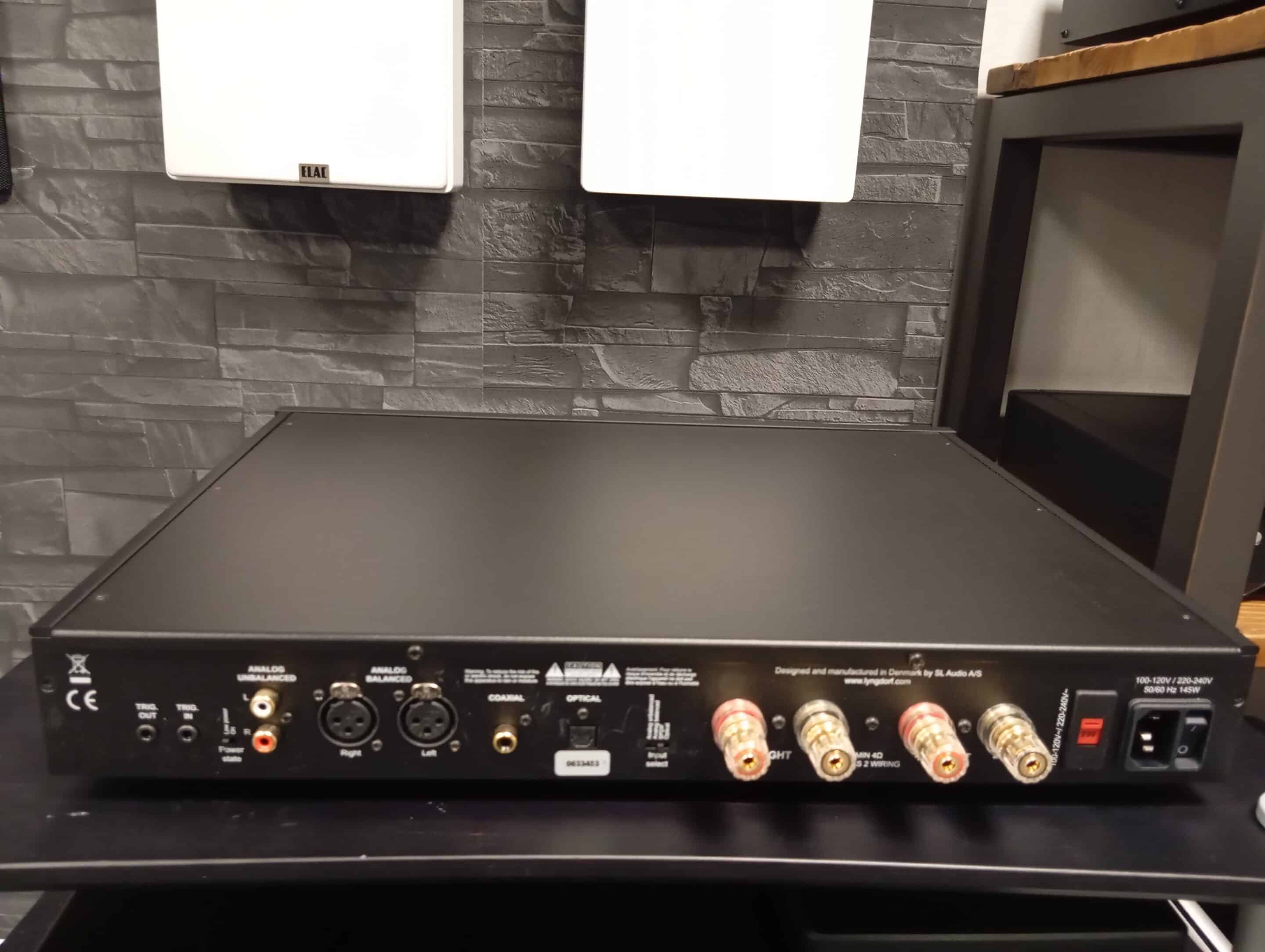

Inputs: 1 x Analog Single Ended RCA, 1 x Analog Balanced XLR, 1 x Coaxial Digital (≤192kHz / 24 bit), 1 x Optical Digital (≤96kHz / 24 bit), * All inputs has signal detection
Internal signal delay: Digital input 0.6 ms, Analog input 0.0 ms
Power Modes: Input detection, Always on
Trigger (12V): 1 x Input, 1 x Output for daisy chain
Heat dissipation value: 210 BTU
Dimensions (WxHxD): 45 x 7.3 x 36 cm*, 17.7 x 2.9 x 14.2 in*, *including 1.3cm / 0.5in feet (rack mounting kit included)
Finish: Anodized aluminum, matte black
Weight: 6.5 kg / 14.3 lb
