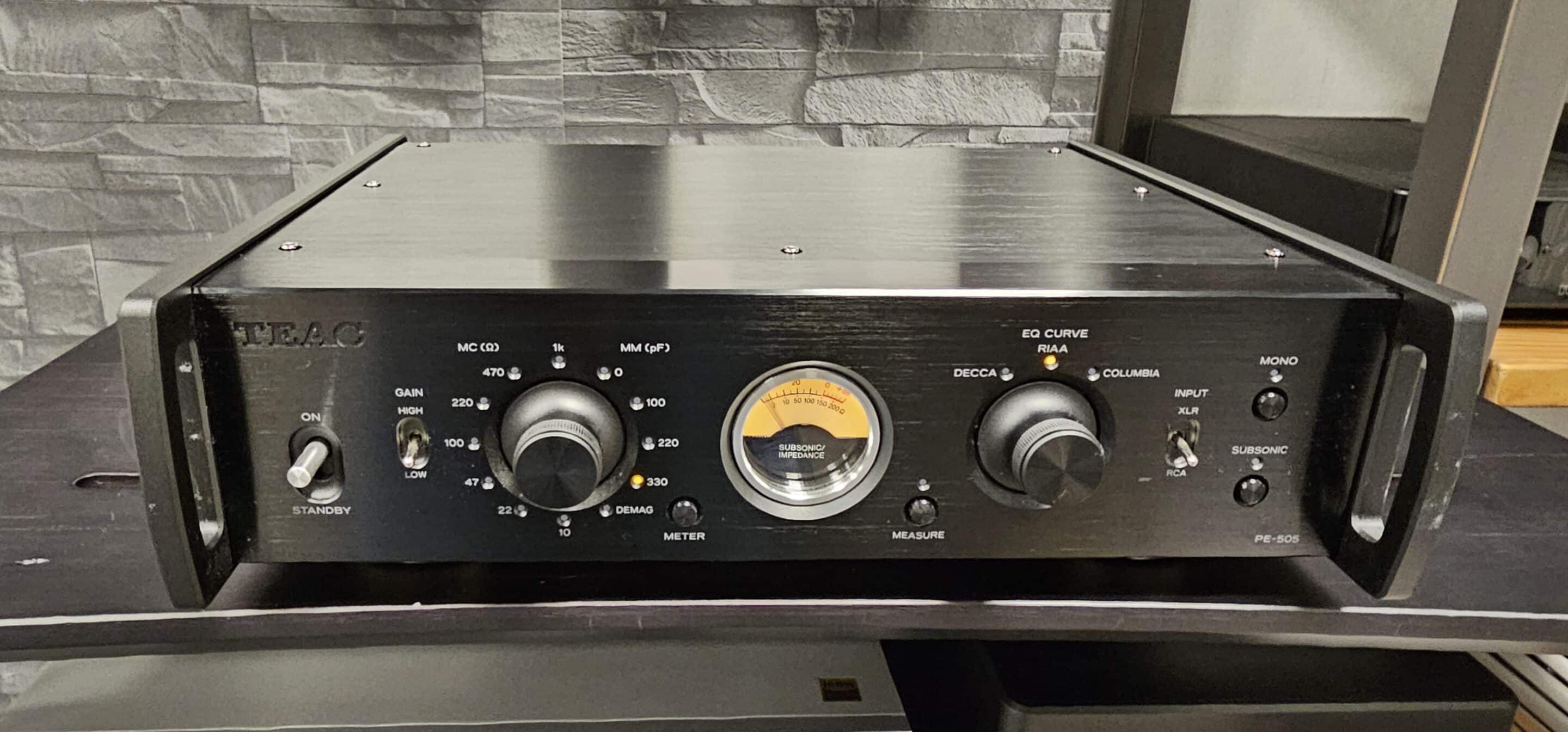

TEAC PE-505 RIAA

Beskrivning

• Modell: TEAC PE-505 RIAA MM & MC
• Färg:  Svart
• Skick: Begagnad, mycket bra skick
• Nypris: 21.990kr
• Garanti: Garanti 3månader
• Tillbehör: Kan skickas, originalemballage saknas

• • Full differential inputs/outputs circuits
  • High-precision RIAA EQ circuit achieves less than 0.05dB of deviation
  • Individual EQ curves for monaural records and ones with EQ from DECCA and COLUMBIA
  • Balanced MC input
  • Switchable MC impedance (10, 22, 47, 100, 220, 470, 1kΩ)
  • Switchable MM load-impedance capacity (0, 100, 220, 330pF)
  • MC load-impedance measurement function
  • Switchable MM/MC gain (High/Low)
  • Subsonic detection
  • Subsonic filter (17Hz, –24dB/oct.)
  • MONO function that mixes left and right channels as a monaural channel
  • DEMAG function that de-magnetizes cartridge
  • 3-position pin-point feet
  • GND terminal
  • RoHS compliant

  • Amplifier section
    Total harmonic distortion	(Rated output, 1kHz, GAIN Low)
    RCA input (MM)	0.002%
    RCA input (MC)	0.02%
    XLR input (MC)	0.02%
    Residual noise volt	(Input short, GAIN low, IHF-A)
    RCA input (MM)	10μV
    RCA input (MC)	65μV
    XLR input (MC)	85μV
    S/N ratio	(Input short, Rated input, GAIN Low, IHF-A)
    RCA input (MM)	106dB
    XLR input (MC)	86dB
    RIAA deviation (20Hz to 20kHz)	±0.05dB
    Channel separation	−90dB or higher (MM, 10kHz, GAIN Low)
    Gain
    GAIN LOW
    RCA input (MM)	34dB
    RCA input (MC)	54dB
    XLR input (MC)	54dB
    GAIN HIGH
    RCA input (MM)	46dB
    RCA input (MC)	66dB
    XLR input (MC)	66dB
    Subsonic filter	17Hz, –24dB/octave
    Phono input section
    Unbalanced input	RCA Pin (MC/MM compatible) × 1 pair
    Max input level	150mV (MM, THD 0.1%, GAIN Low) 16mV (MC, THD 0.1%, GAIN Low)
    Input impedance*
    MM	47kΩ, Load-impedance: 0, 100, 220, 330pF
    MC	10, 22, 47, 100, 220, 470, 1kΩ
    Balanced input	XLR (MC only) × 1 pair
    Max input level	16mV (MC, THD 0.1%, GAIN Low)
    Input impedance*
    MC	10, 22, 47, 100, 220, 470, 1kΩ * switchable from the Settings

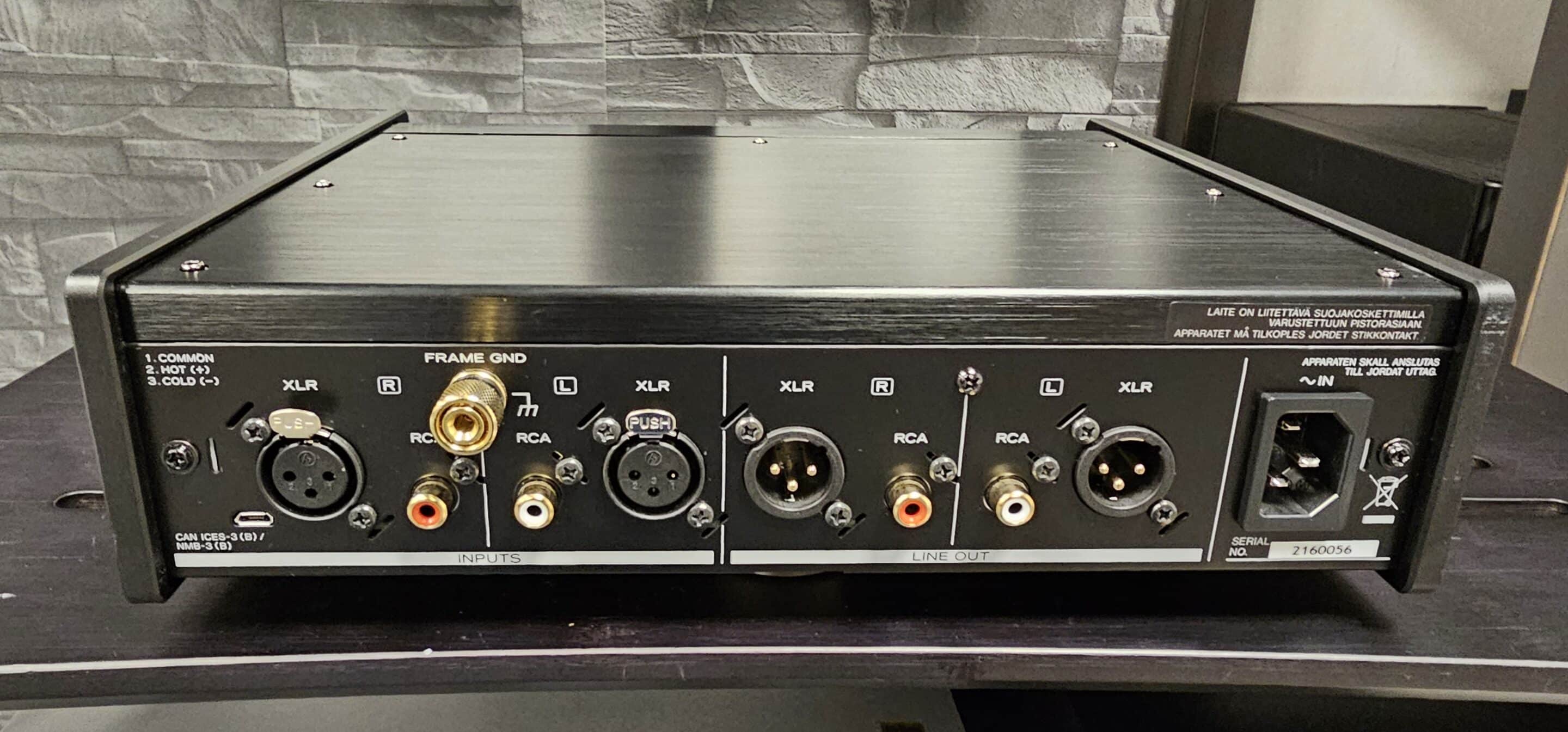

    Analog output section
    Unbalanced output	RCA pin × 1 pair
    Rated output level	2Vrms
    Output impedance	63Ω
    Balanced output	XLR × 1 pair
    Rated output level	4Vrms
    Output impedance	126Ω
    Power supply
    	AC120V, 60Hz
    	AC220 – 240V, 50/60Hz
    Power consumption	14W
    Overall dimensions(W × H × D)	290 × 84.5 × 252.5 mm
    Weight	4.5kg
