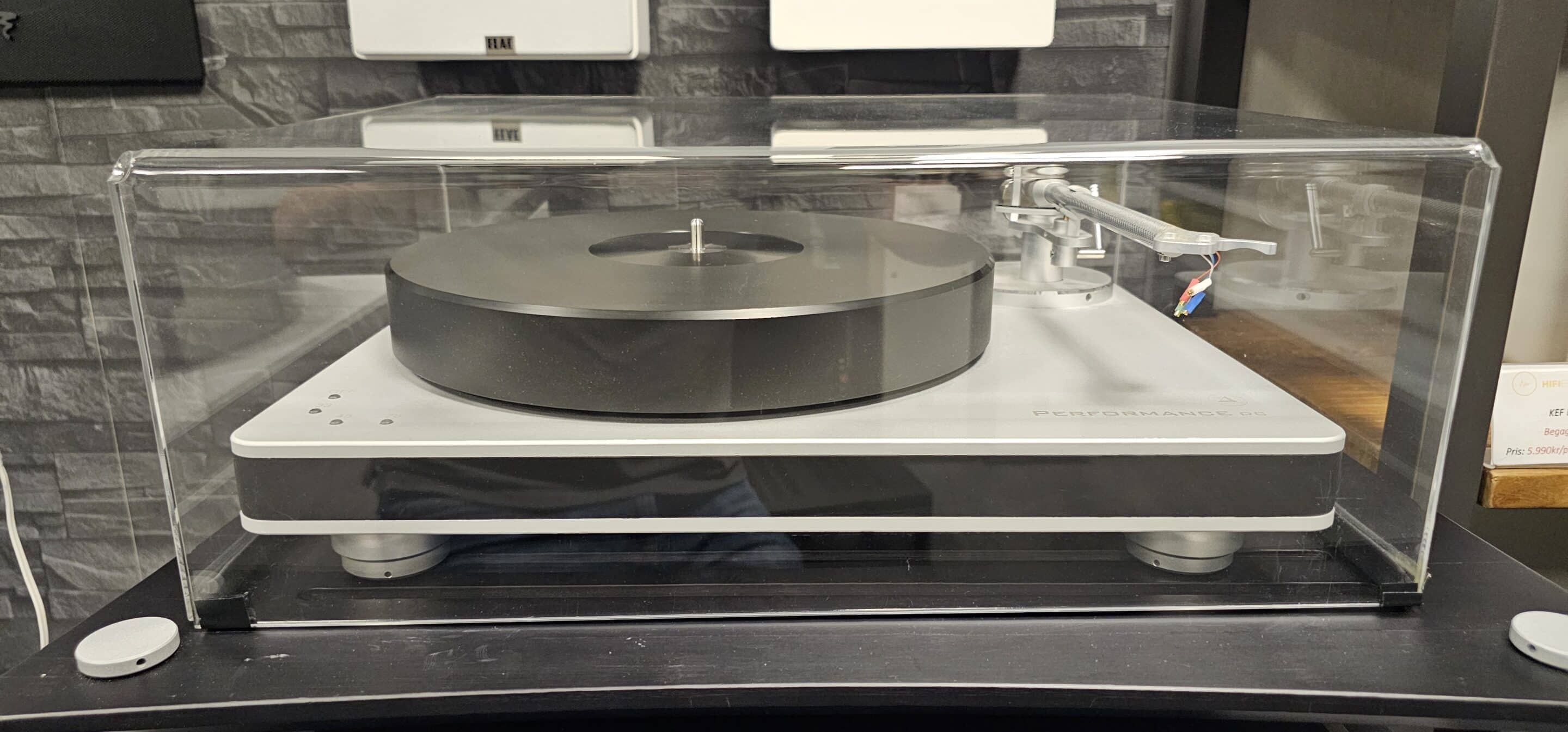

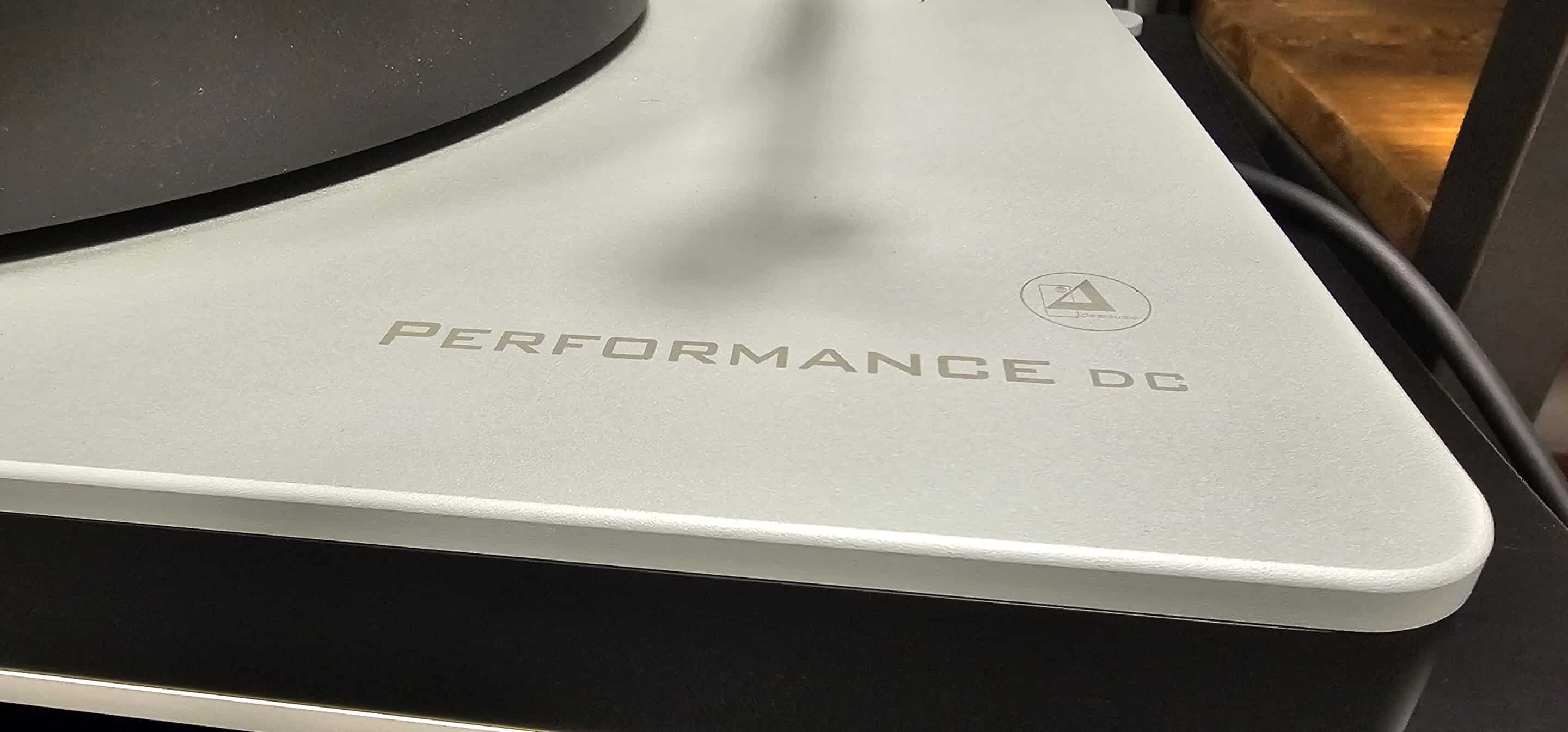

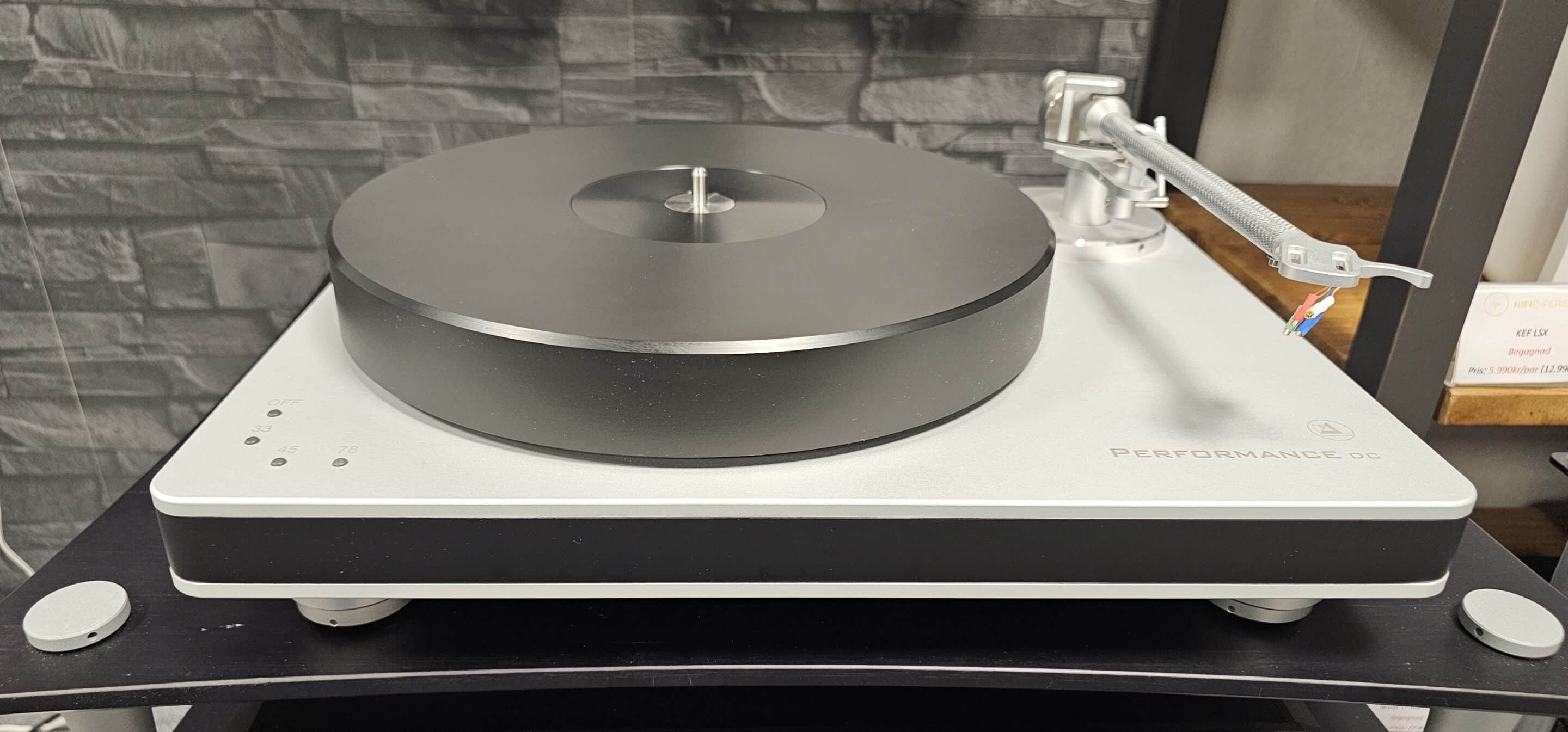

Clearaudio Performance DC med Clarify Tonarm

-Konstruktion: Resonansoptimerad med kraftfullt komprimerat trächassi i en sandwich-konstruktion.

Träet inbäddat mellan två aluminiumplattor.

-Hastigheter: 33 1/3, 45 och 78 varv

-Motor: Isolerad och resonansdämpad DC-motor, drivrem och nätdel av plug-in-typ har designads för att fungera i hela världen.

-Rumble: DIN IEC 98 dB,

A-vägt: 92 dB

-Lager: Utskuren och polerad keramikaxel bronshölje, Clearaudios keramiska magnetlagerskontruktion (CMB)

-Tallrik: CNC precisionsutskuren svartfärgad POM-tallrik, 40mm

-Hastighetsvariation: +/- 0.03 %

-Vikt: 11,5 kg inkl. motorn

-Mått (B x D x H): 420 x 330 x 130 mm

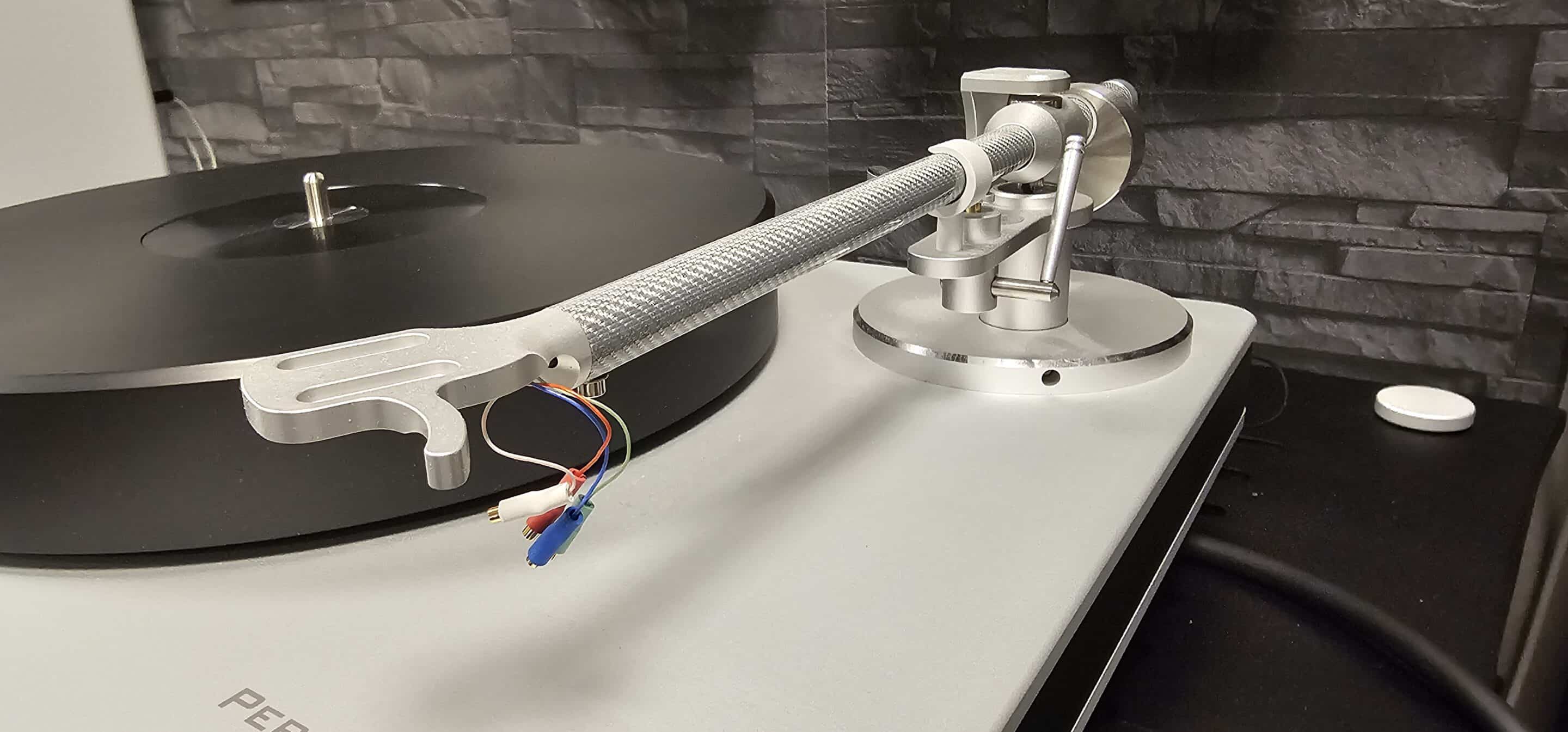

9″ Kolfiber arm med friktionsfritt magnetlager Carbon Silver.



The Clarify tonearm combines selected technological features with a timeless design to deliver high-end performance at an unbeatable price.



Like all Clearaudio tonearms, it is designed for use with a wide range of turntables and cartridges. Key features include:



•A carbon fibre weave arm tube constructed for exceptional rigidity.



•A two-piece aluminum headshell with adjustable azimuth which allows the accurate alignment of any cartridge type.



•A magnetic bearing which effectively suspends the arm tube in a magnetic field to eliminate bearing chatter, and which functions much like a unipivot design but with superior stability.



•A micrometer style counterweight adjustment and anti-skating control situated on the base of the arm pillar, allowing easy and accurate alignment of the phono cartridge.



•An unbroken run of Clearaudio’s own Direct Wire cable which provides a continuous link without solder connections from the cartridge to phono plugs.



Technical specifications Construction: Carbon fibre, friction-free tonearm with magnetic bearing technology – micrometer-styleprecision adjustable counter weight Cartridge balance range: 2.5 gram – 19 gram Zero points:



Inner: 66.0 mm Outer: 120.9 mm Audio lead: Clearaudio phono cable 1.2 m from tonearm: Cable – capacitance: 136 pF Cable – inductance: 2 µH Cable – resistance: 345 Ω Overhang: 17.31 mm Overall length: 335 mm



Effective tonearm length: 9 inches / 239.31 mm Distance from pivot to stylus: 222 mm Offset angle: 23.00° Maximum of tilt angle according to the radius: 0.123°/cm Anti-skating factor at a radius of 62.9 mm and 126.9 mm: 0.43 Mounting style:



Clearaudio / Linn



Tonearm weight: 320 gram 410 gram (incl. counter weight)



The Clarify is supplied as standard with a Linn-type mount or can be used with the Clearaudio VTA-Lifter, which allows fine adjustment of VTA even during play.
