Beskrivning
Avancerat drivverk med optisk realtidsfartreglering. Resonansoptimerat gediget
chassi. Högkapacitets DC Motor.
Clearaudios Patenterade magnetlager.
Priset är endast för drivverket, ej Pickup och tonarm.
Önskar ni paket på skivspelare med en Clearaudio tonarm och pickup återkom till oss så ordnar vi ett bra paketpris på det.

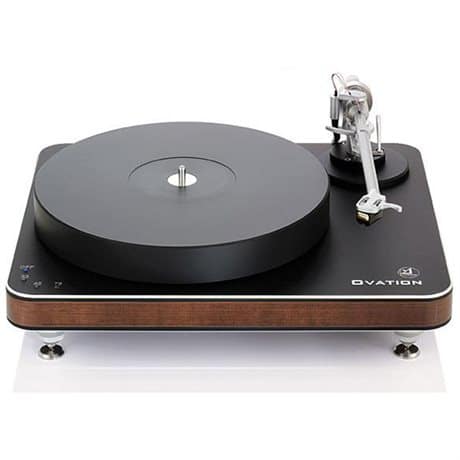

The new clearaudio “”Ovation”” turntable includes many existing clearaudio innovations
and introduces new cutting-edge technology:
The main chassis consists of a complex sandwich of materials: aluminium – bullet-proof-wood – aluminium. Within the precision-machined bullet-proof-wood layer, clearaudio have introduced an elaborate resonance damping measure: an internal ‘mat’ comprising approximately 100.000 tiny stainless steel balls.
The powerful and smooth-running DC motor is integrated within and is effectively decoupled by the main chassis. Clearaudio’s OSC ‘Optical Speed Control’ technology continuously monitors a micro infrared strobe to ensure exact speed stability.
The motor is hidden beneath the platter and drives the precision machined aluminium sub-platter via a precision machined POM main platter are supported by clearaudio’s patented CMB Ceramic Magnetic Bearing’.
The drive system is operated by four blue illuminated buttons, ergonomically integrated into the front left of the chassis.
Almost any commercially available 9 inch tonearm can be fitted by virtue of the easily interchangeable armboards.
The new “”Ovation”” device combines innovative clearaudio technologies with elegant design and exquisite production quality.
| Construction details: | Resonance-optimised chassis, recommended tonearm with magnetic bearing technology |
| Speed ranges: | 33 1/3, 45 and 78 RPM |
| Drive unit (motor): | Decoupled DC motor in chassis, resonance damping device |
| Rumble: | DIN IEC 98 by method A / 92 dB |
| Bearing: | Polished ceramic shaft in a sintered bronze bushing, magnetic bearing (CMB) |
| Platter: | Black coloured POM, 1,5 inch / 38 mm |
| Speed variation: | ± 0,03 % |
| Weight: | approx. 13.5 kg incl. motor |
| Dimensions (W/D/H in inches): | 54 x 13.78 x 4.53 |
| Dimensions (W/D/H in mm): | 420 x 350 x 115 |
| Manufacturers guarantee: | -2års Garanti(5 Years*) |
“
