9″ Kolfiber arm med friktionsfritt magnetlager Carbon Silver.

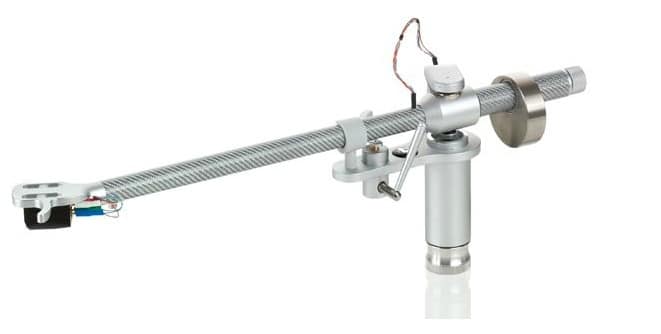

The Clarify tonearm combines selected technological features with a timeless design to deliver high-end performance at an unbeatable price.
Like all Clearaudio tonearms, it is designed for use with a wide range of turntables and cartridges. Key features include:
•A carbon fibre weave arm tube constructed for exceptional rigidity.
•A two-piece aluminum headshell with adjustable azimuth which allows the accurate alignment of any cartridge type.

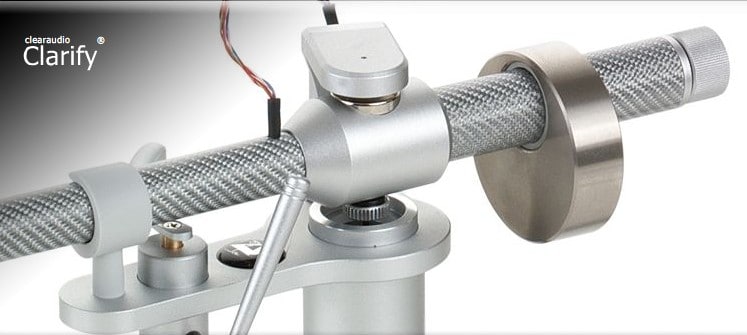

•A magnetic bearing which effectively suspends the arm tube in a magnetic field to eliminate bearing chatter, and which functions much like a unipivot design but with superior stability.
•A micrometer style counterweight adjustment and anti-skating control situated on the base of the arm pillar, allowing easy and accurate alignment of the phono cartridge.
•An unbroken run of Clearaudio’s own Direct Wire cable which provides a continuous link without solder connections from the cartridge to phono plugs.
Technical specifications Construction: Carbon fibre, friction-free tonearm with magnetic bearing technology – micrometer-styleprecision adjustable counter weight Cartridge balance range: 2.5 gram – 19 gram Zero points:
Inner: 66.0 mm Outer: 120.9 mm Audio lead: Clearaudio phono cable 1.2 m from tonearm: Cable – capacitance: 136 pF Cable – inductance: 2 µH Cable – resistance: 345 Ω Overhang: 17.31 mm Overall length: 335 mm
Effective tonearm length: 9 inches / 239.31 mm Distance from pivot to stylus: 222 mm Offset angle: 23.00° Maximum of tilt angle according to the radius: 0.123°/cm Anti-skating factor at a radius of 62.9 mm and 126.9 mm: 0.43 Mounting style:
Clearaudio / Linn
Tonearm weight: 320 gram 410 gram (incl. counter weight)
The Clarify is supplied as standard with a Linn-type mount or can be used with the Clearaudio VTA-Lifter, which allows fine adjustment of VTA even during play.
