Beskrivning
JVC DLA-Z1 ären helt nya High-End projektor som är en 4K (4096 x 2160)projektor som även kan skala upp såväl bluray- som dvd-film till den högre upplösningen.
- Första projektorn somär godkänd förTHX 4K Display
- D-ILA paneler (4096 x 2160 x3)
- BLU-Escent laser
- HDR / BT.2020
- 3000 ANSI Lumen
- Obefintlig dynamisk kontrast
- THX-certifierad för 4K
- Linsminne för 16:9 / Cinemascope
JVC DLA-Z1 använder sig av en laserteknologi kallad “Blu-Escent” med en extremt realistisk bild.
Upp till3 000 lumen går att få ut vilket är mer än tillräckligt för de flesta installationer.
JVC DLA-Z1 har en hel del att skryta med i form av 4K (4096 x 2160), HDR (high dynamic range), 4K60P(4:4:4), 10bit BT.2020, HDCP2.2och lamptid upp till 20000tim.
HDR är en teknik för att utöka färger och kontraster i bilden på ett sätt som ger användaren en kraftfullare upplevelse.
Resultatet är en mer realistisk och naturligare bild än vad vanliga tv-apparater och projektorer vanligtvis klarar. Det krävs dock att videomaterialet är förberett för HDR.
MER INFO HÄR
EGENSKAPER
Typ:D-ILA
- Bildformat:16:9 / Cinescope
- Upplösning:4096 × 2160
- Bildingångar:2 x HDMI (HDCP2.2)
- Ljusstyrka:3000 ANSI Lumen
- Fläktljud:25 dB (ECO)
- Kontrast:Oändlig dynamisk kontrast
- Takmontering:Ja
- Mått:500 x 235 x 720
- Vikt:37.5 Kg
- Garanti:3 års garanti
- THX 4K Display Certification to ensure the precise reproduction of picture quality in both 2K and 4K resolution, just as the original filmmaker envisioned.
- Newly developed 0.69″ native 4K D-ILA device – world’s smallest 4K device for use as home theatre projectors (as of Oct. 2016)
- High-definition display at 4K resolution (4096 x 2160)
- Support for HDR content with extended brightness range with the projector’s high contrast ratio, 80% BT.2020 coverage, dynamic light source control and a peak brightness of 3,000 lm
- Exceptional brightness of 3,000 lm achieved with the BLU-Escent laser light source and optimised optical engine
- New lens system incorporating 18-element, 16-group all-glass 100 mm diameter lens and five ED lenses reduces chromatic aberration and colour fringing
- 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit at 18 Gbps bandwidth)
- Contrast ratio of infinity:1 achieved with the massive increase in peak brightness

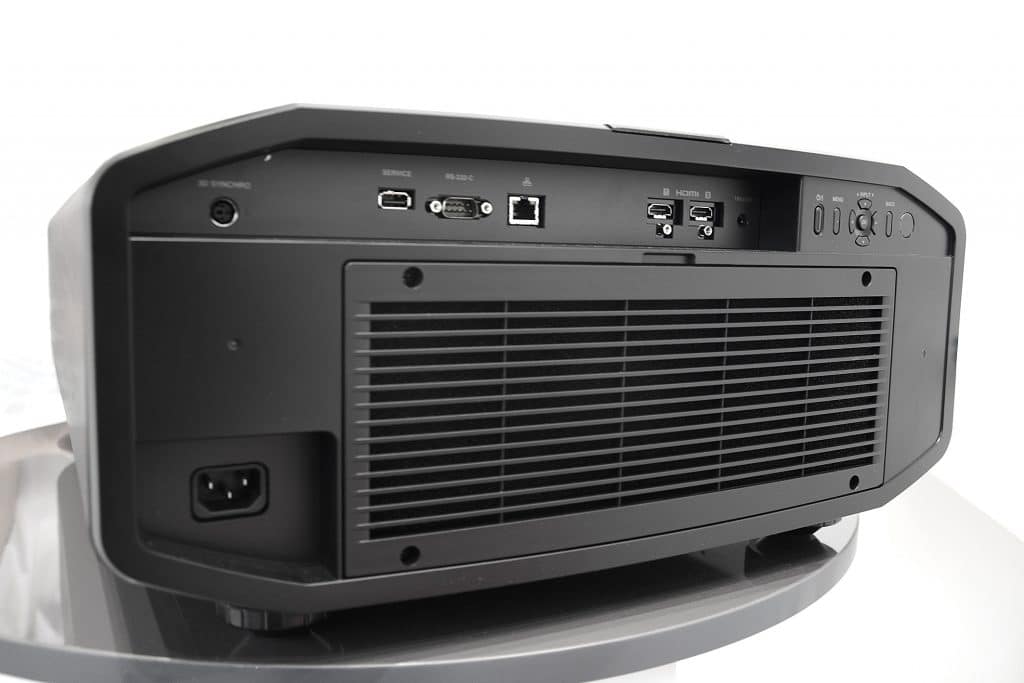

- Connectors: HDMI x 2 (3D, Deep Colour/HDCP 2.2/18 Gbps), RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack, DC12 V/100 mA), 3D Sync x 1 (3-pin mini-DIN), Service (USB Type-A)
- Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
- Upscaling of Full HD video to 4K
- *Professional calibration to desired screen is performed by trained dealers **Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details.
- Smooth and detailed reproduction of fast-moving images such as sports and action movies achieved with two video processing technologies – the blur-reducing Clear Motion Drive, which is compatible with signals up to 4K60p (4:4:4), and Motion Enhance, which minimises motion blurring by optimizing the D-ILA driver
- Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input up to 4K60P 4:4:4
- ISF C3 (Certified Calibration Controls) mode* to reproduce excellent picture quality optimized for specific environments.
- Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
- Multiple Pixel Control technology offers more realistic presentation of images with greater sense of clarity and softness of focus to backgrounds
- 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
- Resolution: 4096 x 2160
- Brightness of 3,000 lm
- Dynamic contrast: Infinity:1
- Vertical orientation and planarization technologies of the device reduce light scattering and diffraction to enhance contrast.
- BLU-Escent laser diode light source
- Support for Hybrid Log-Gamma, which is expected to be used in future broadcasting
- BLU-Escent laser light source uses blue laser diodes to offer high brightness level and long life
- New optical engine optimised for 4K with F2.6 that uses light much more efficiently
