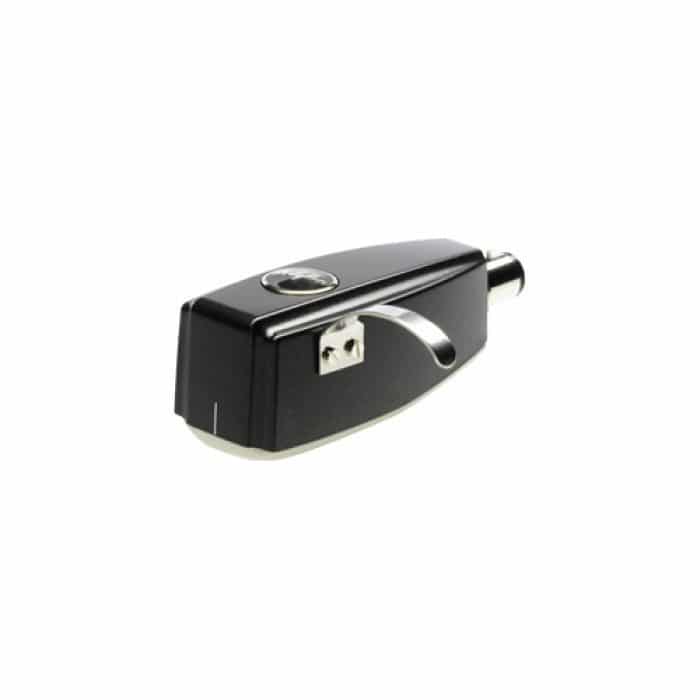

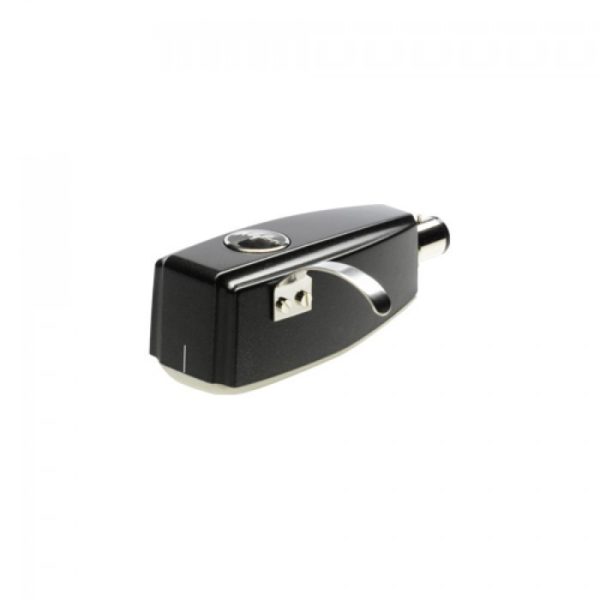

Ortofon SPU Classic GM MK II

Beskrivning

The SPU Classic GM MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

EGENSKAPER

• • Output voltage at 1000 Hz, 5cm/sec. – 0.2 mV


• • Channel balance at 1 kHz &lt 1 dB


• • Channel separation at 1 kHz &gt 20 dB


• • Channel separation at 15 kHz &gt 10 dB


• • Frequency response – 20-20.000 Hz + 3/- 3 dB


• • Tracking ability at 315Hz at recommended tracking force *)&gt 65 µm


• • Compliance, dynamic, lateral – 8 µm/mN


• • Stylus type – Nude Spherical


• • Stylus tip radius – R 18 µm


• • Tracking force range – 3.0-5.0 g (30-50 mN)


• • Tracking force, recommended – 4.0 g (40 mN)


• • Tracking angle – 20°Internal impedance, DC resistance – 6 ohm


• • Recommended load impedance &gt 10 ohm


• • Cartridge body material – Grinded wood and resin composite


• • Coilwire material – High Purity Copper (OFC)


• • Cartridge colour – Shiny black


• • Cartridge weight – 32 g

• • Garanti 2år
