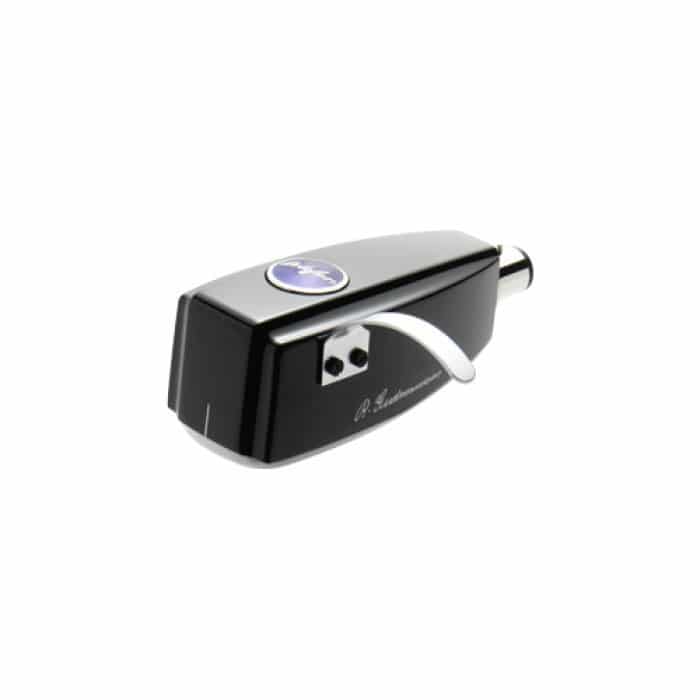

Ortofon SPU Meister Silver GM MK II

Beskrivning

The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.

The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.

EGENSKAPER

• • Output voltage at 1000 Hz 5cm/sec – 0,3 mV


• • Channel balance at 1 kHz &lt 1 dB


• • Channel separation at 1 kHz &gt 20 dB


• • Channel separation at 15 kHz &gt 10 dB


• • Frequency response 20 – 20 kHz +2/-1 dB


• • Tracking ability at 315 Hz at recommended tracking force *) &gt 70 μm


• • Compliance, dynamic, lateral – 8 μm/mN


• • Stylus type – Nude elliptical


• • Stylus tip radius – r/R 8/18 μm


• • Tracking force range – 3.0-5.0 g (30-50 mN)


• • Tracking force recommended – 4.00 g (40 mN)


• • Tracking angle – 20ºInternal impedance, DC resistance – 1.5 ohm


• • Recommended load impedance &gt 10 ohm


• • Coilwire material – Silver, 6-nines


• • Cartridge body material – Grinded wood and resin composite


• • Cartridge colour – Shiny black


• • Cartridge Weight – 32 gram

• • Garanti 2år
