Beskrivning

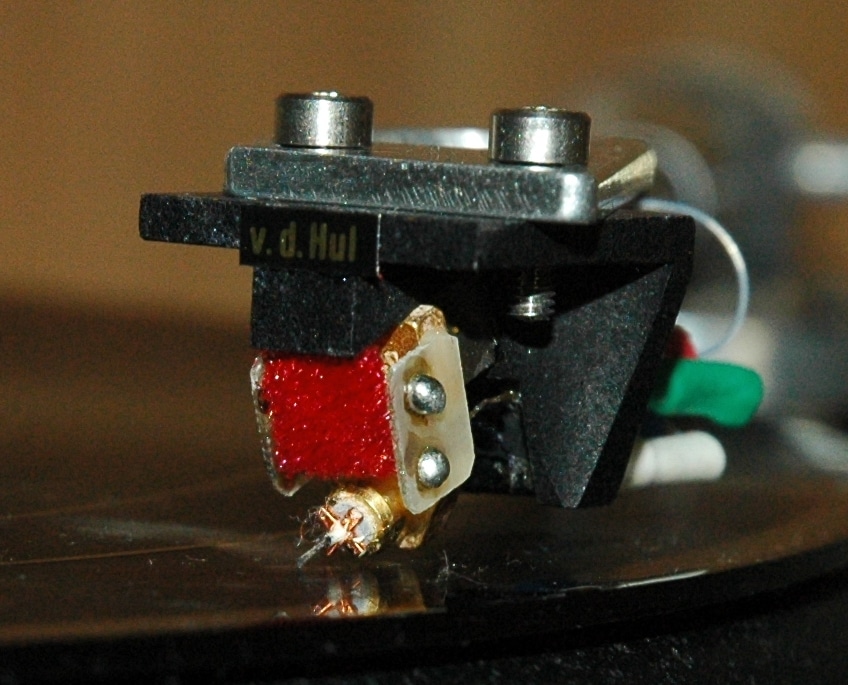

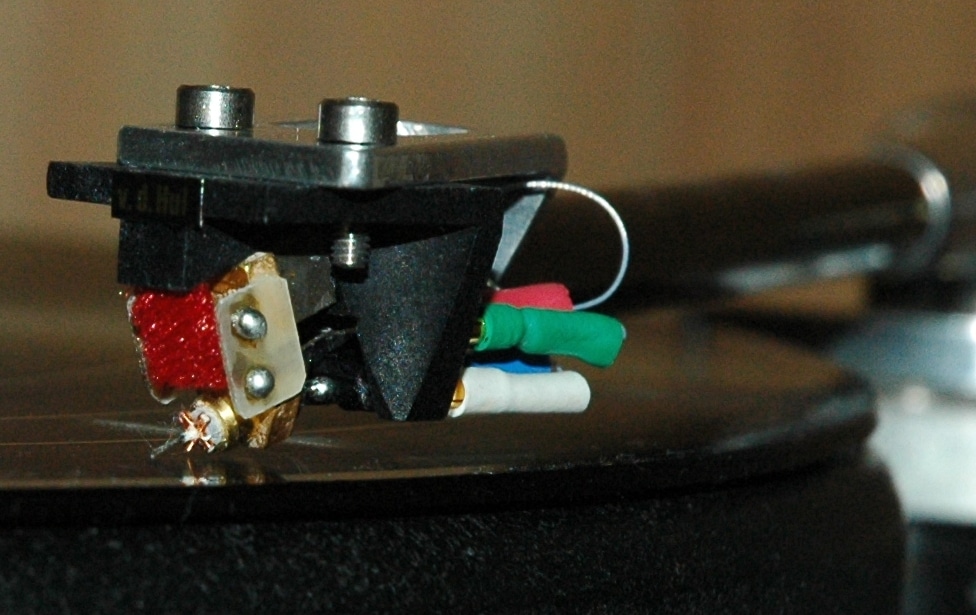

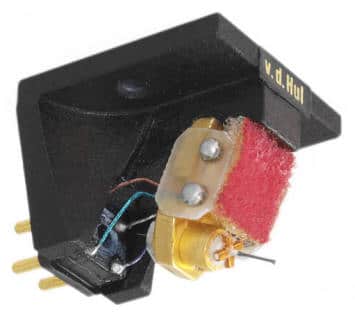

The Condor är en handbyggd MC (Moving Coil) från Van Den Hul av högsta kvalité med en enorm ljudbild och massor av detaljer som kommer fram på ett naturligt sätt, även ur dina äldre vinylskivor.
The Condor finns i 4st olika versioner
XC-LO Version: (X = cross shaped modulator, C = matched crystal Copper wire coils, LO = Low Output)
- Low output all-round model
- Output voltage: 0.25 mV/channel
- Types available: XCP-LO and XCM-LO (P and M type suffix see *4)
XC-HO Version: (X = cross shaped modulator, C = matched crystal Copper wire coils, HO = High Output)
- High output, most suitable for jazz and pop music
- Output voltage: 0.55 mV/channel
- Types available: XCP-HO and XCM-HO (P and M type suffix see *4)
XG-LO Version: (X = cross shaped modulator, G = matched crystal Gold wire coils, LO = Low Output)
- Low output, most suitable for classical music
- Output voltage: 0.25 mV/channel
- Types available: XGP-LO and XGM-LO (P and M type suffix see *4)
XG-HO Version: (X = cross shaped modulator, G = matched crystal Gold wire coils, HO = High Output)
- High output, most suitable for jazz and pop music
- Output voltage: 0.45 mV/channel
- Types available: XGP-HO and XGM-HO (P and M type suffix see *4)
Produktionstid för att göra en Condor är ca 2veckor.
EGENSKAPER
| version | a) XCP-LO & XCM-LO b) XCP-HO & XCM-HO c) XGP-MO & XGM-MO d) XGP-HO & XGM-HO |
| stylus replacement | see (*1) |
| stylus shape | VDH – IS |
| stylus radii | 2 x 85 Micron |
| frequency range | 5 – 55.000 Hz |
| tracking force | 13.5 – 15 mN see (*3) |
| static compliance | 35 Micron/mN see (*3) |
| tracking ability | 70 – 80 Micron |
| output voltage |
a) 0.25 mV RMS |
| channel unbalance | < 0.3 dB |
| channel separation |
> 36 / > 30 dB |
| stylus tip mass | 0.32 Milligram |
| system weight | see (*4) |
| vertical tracking angle | 22 Degrees |
| load capacitance | see (*2) |
| load impedance |
a) 500 (> 200) Ohm |
| eff tone arm mass | see (*3) + (*4) + (*5) |
|
moving coil resistance
Garanti |
a) 21 Ohm +/- 10% 2år |
