9″” kolfiberarm baserad på Exact tonarmen av Mr. Tietze.

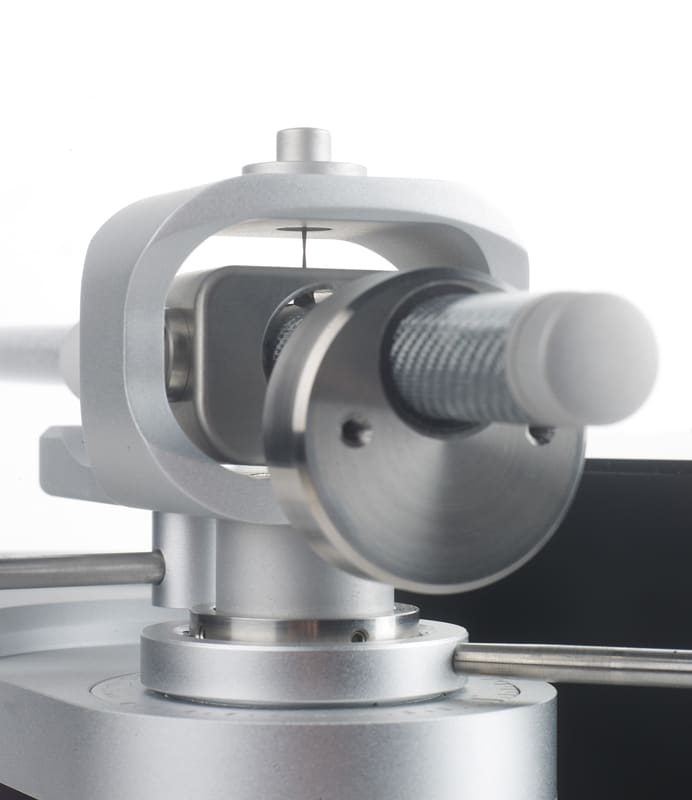

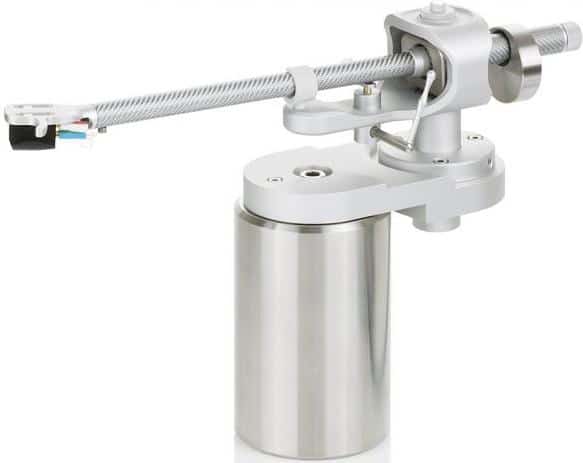

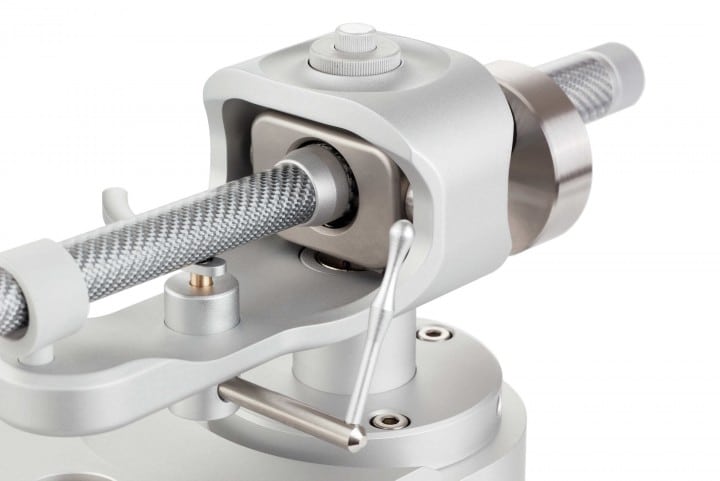

The Clearaudio Magnify tonearm delivers the world’s first ‘hybrid’ bearing design. It combines a high quality ball race bearing for vertical movement, with a brand new magnetic bearing for horizontal movement. Anti-skating is also applied magnetically. Other key features include:
A two-piece arm tube constructed from a carbon fibre weave for exceptional rigidity. A lightweight one-piece aluminium headshell with adjustable azimuth.
An offset, underslung counterweight.
Precision micrometer adjustment of tracking force.
Anti-skating control which is applied by an innovative magnetic system acting on the side of the bearing housing.
An unbroken run of Clearaudio’s own Direct Wire cable which provides a continuous link without solder connections from the cartridge to phono plugs. The Magnify is supplied as standard with a Linn-type mount or can be used with the Clearaudio VTA-Lifter, which allows fine adjustment of VTA even during play. Like all Clearaudio tonearms, the Magnify is designed for use with a wide range of turntables and cartridges.
Technical specifications Construction: Ball bearing magnet hybrid technology
Cartridge balance range: 4.0 gram 22 gram
Zero points: Inner: 66.04 mm
Outer: 120.9 mm Audio lead: 1 metre Clearaudio Sixstream cable or RCA junction box
Overhang: 17.3 mm
Overall length: 345 mm
Effective tonearm length: 9.4 inches / 239.3 mm
Distance from pivot to stylus: 222 mm
Tilt angle: 23.00° Maximum of tilt angle according to the radius: 0.123°/cm
Middle skatingfactor at a radius of 133 mm and 83.9 mm: 0.49
Mounting style: Linn
Garanti 5 År
