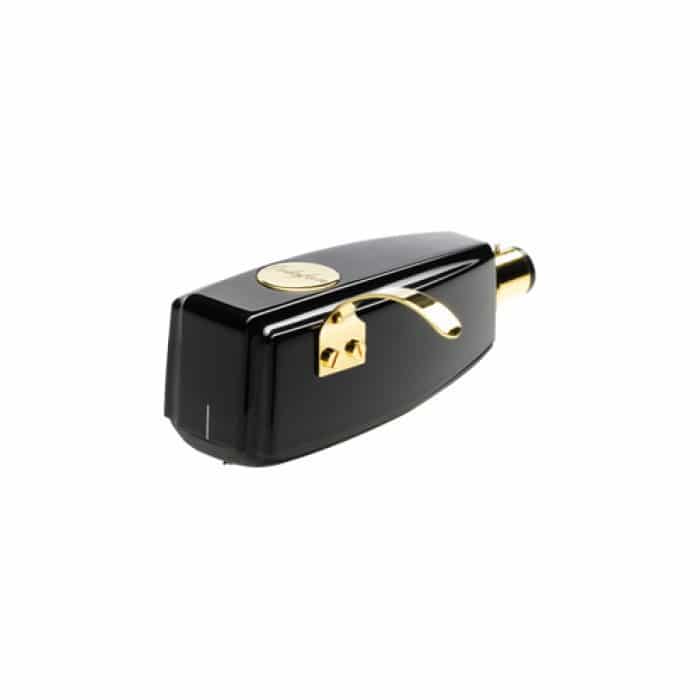

Ortofon SPU Synergy GM

Beskrivning

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

EGENSKAPER

• • Output voltage at 1000 Hz, 5cm/sec. – 0.5 mV

• • Channel balance at 1 kHz &lt 1.5 dB

• • Channel separation at 1 kHz &gt 23 dB

• • Channel separation at 15 kHz &gt 15 dB

• • Frequency response – 20-20.000 Hz ± 2 dB

• • Tracking ability at 315Hz at recommended tracking force *)&gt 70 µm

• • Compliance, dynamic, lateral – 8 µm/mN

• • Stylus type – Nude elliptical

• • Stylus tip radius – r/R 8/18 µm

• • Tracking force range – 2.5-3.5 g (25-35 mN)

• • Tracking force, recommended – 3.0 g (30 mN)

• • Tracking angle – 20°Internal impedance, DC resistance – 2 ohm


• • Recommended load impedance – 10 – 50 ohm


• • Cartridge body material – Grinded wood and resin composite


• • Coilwire material – High Purity Copper (OFC)


• • Cartridge colour – Shiny Black


• • Cartridge weight – 30 g

• • Garanti 2år
